Surface Hub 2S Migration Guide to Microsoft Teams Rooms on Windows

Surface Hub 2S Migration Overview

In this article we will explain the upcoming end-of-support timeline for Windows 10 Team edition on Surface Hub devices and outline the process for migrating to Microsoft Teams Rooms on Windows. We will describe the different migration paths, cover what administrators can expect during and after migration, and provide guidance on how to prepare and validate each device post-migration. By the end of this, IT administrators should have a clear understanding of the steps required to transition their Surface Hub 2S devices to the new operating system.

Windows 10 Team OS End of Support

The Windows 10 Team edition operating system reaches end of support on October 14, 2025. On that date, Surface Hub devices running Windows 10 Team will stop receiving security updates, and sign-in to Microsoft Teams Rooms will no longer function. As a result, any Surface Hub v1 or 2S still running Windows 10 Team will be unable to join or host meetings. The following sections explain how to prepare for this transition, including the required migration of Surface Hub 2S devices to Microsoft Teams Rooms on Windows (MTR-W).

Windows 10 Team vs. Microsoft Teams Rooms on Windows

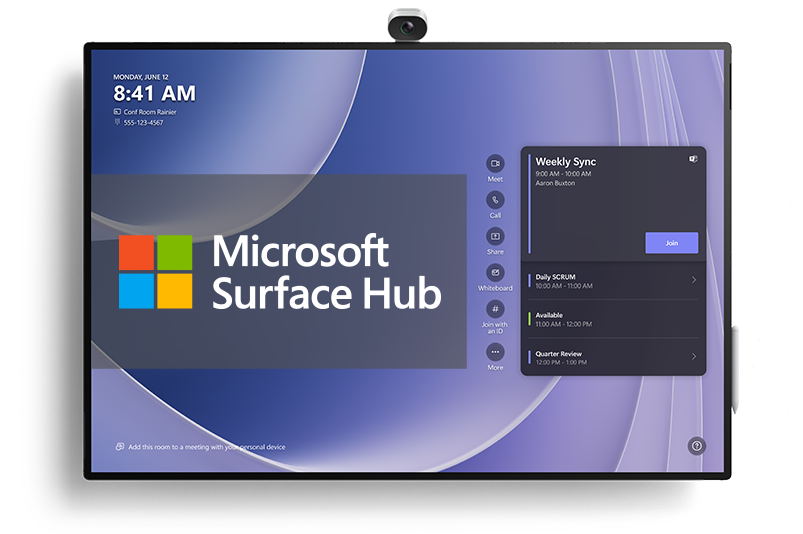

Windows 10 Team edition was a specialized operating system designed only for Surface Hub devices, whereas Microsoft Teams Rooms on Windows (MTR-W) is built on Windows 11 IoT Enterprise and is a more universal conferencing OS. The two systems differ in user interface, configuration options, and management capabilities. MTR-W provides a full Windows 11 environment with support for group policy, scripting, remote desktop and standard Windows device management (including an administrator desktop interface). Refer to the Microsoft’s documentation for a detailed comparison of these two platforms and guidance on preparing for, managing, and using MTR-W.

What is Migration?

The Surface Hub 2S OS migration is the process of transitioning each device from Windows 10 Team edition to Microsoft Teams Rooms on Windows. Importantly, this is not a typical Windows update as each Hub is completely re-imaged, where it then must be walked through the out-of-box experience and configured from scratch. The migration process occurs in two phases. In Phase 1, the device is migrated off Team edtion and onto MTR-W using one of the supported paths (below). In Phase 2, after the system is running MTR-W, the device needs be fully reconfigured, for example, authenticating it with your network, domain joining, adding the Teams resource account, and applying policies so it’s ready for your end users to start using it.

Tip: Administrators should plan for both phases and allocate sufficient time and resources to complete each device’s migration and re-configuration.

Before Migrating

Before beginning migration on a Surface Hub 2S, ensure that you have the necessary information needed to reconfigure the device from a clean state. At a minimum, prepare the following:

Network information: If the device will be connected to an 802.1x authenticated wired or wireless network, or using a proxy, collect the required certificates, proxy details, and any network profiles.
Teams resource account: Have the room resource account UPN and password available. You can verify the credentials are valid prior to migrating by signing into teams.microsoft.com.
Domain Join and MDM enrollment: Gather all details for domain joining and MDM enrolling, including the device naming convention, join credentials and target OU.
Allocate time: Ensure you allocate enough time to both migrate and configure the device post-migration, as you’ll need to validate each device is functioning correctly in your production environment before putting the conferencing room back into service.

Note: for more information on networking see how to configure 802.1x network authentication for MTR-W. In a second post, we explain why machine authentication is needed.

Phase 1: Migrate Surface Hub 2S to MTR-W

For Surface Hub 2S devices, there are three supported migration paths to move to MTR-W. Remember this must be completed by the October 14, 2025 deadline. This information serves as an overview of each migration path, so please refer to the step-by-step videos and detailed guidance in the dropdowns below.

Hardware Migration

With this approach you replace the Surface Hub 2S compute cartridge with a Surface Hub 3 cartridge. This effectively converts the device into a Surface Hub 3, improving performance and enabling screen rotation on the 50 inch model. For more information refer to Microsoft’s documentation.

Software Migration

With this method you utilize your network and the installation of the Surface Hub 2S OS Migration Launcher app on the Surface Hub 2S to complete migration. The app downloads the MTR-W image (about 30 GB) in the background. After a reboot, a script will run that re-images the device with MTR-W. For more information refer to Microsoft’s documentation.

USB Migration

When you need to migrate devices that are either offline or having issues with the Migration launcher app approach, you can use a USB drive to migrate to MTR-W. For this you’ll need to unlock the Surface Hub 2S UEFI using a SEMM package, where it will then allow the device to boot the MTR-W recovery image. You’ll then follow the on-screen prompts to re-image the device from the USB drive. For more information refer to Microsoft’s documentation as well as my guide on How to USB Migrate Surface Hub 2S to MTR-W.

Phase 2: Post-Migration Setup

After a Surface Hub 2S has been migrated to MTR-W, it will boot into the Windows 11 IoT Enterprise out-of-box experience. Complete the initial setup by connecting the device to your network where it will then install day 1 updates. Once the system restarts, you will see the Microsoft Teams Rooms configuration screen. At this point, enter the email address and password for the Teams resource account which the device will use to sign into Teams for conferencing.

Guidance for Surface Hub v1

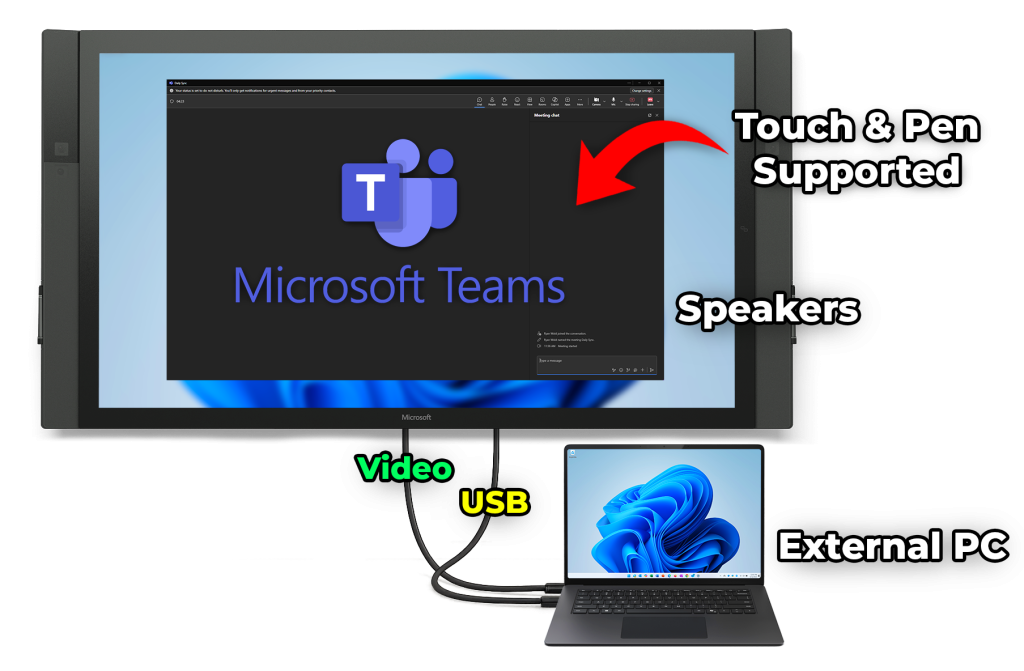

For Surface Hub v1 devices, these cannot be migrated to Microsoft Teams Rooms on Windows. Organizations must either replace the entire device or repurpose it by connecting an external PC to the Hub’s display and input system. In that scenario, the Hub functions only as a touchscreen display, and someone must sign in to Windows on the connected computer to use the device for meetings. Refer to the Microsoft documentation on using Guest Mode or Replacement PC mode for additional guidance on extending the usability of Surface Hub v1 devices. You can also follow the blog post I wrote on using a Surface Hub v1 as an interactive touch display for additional details.

Migrate Before the Deadline!

If you have not already begun planning your migration to MTR-W for your Surface Hub 2S devices, start now to ensure completion before the October 14th deadline. Use Microsoft’s official documentation, video guides, and support resources for step-by-step instructions on each migration path and on configuring the new operating system. By migrating your Surface Hubs to Microsoft Teams Rooms on Windows, you will keep your conferencing rooms supported, secure, and up to date beyond October 2025.
